Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 200-17BA or 200-17BB

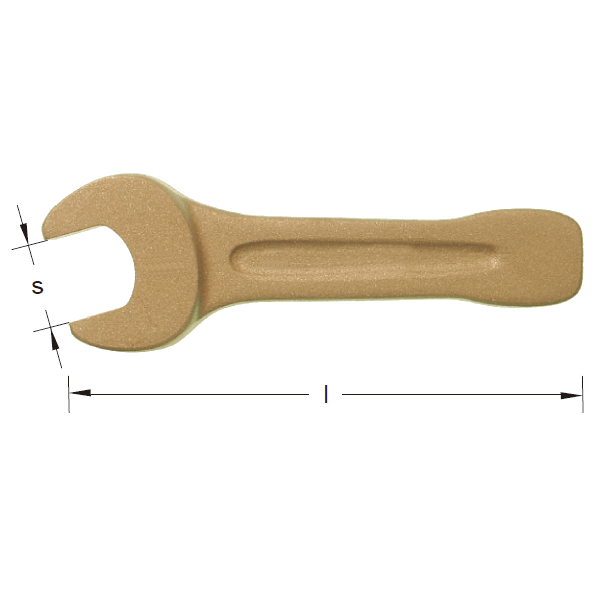

Type (ID): 200
Body::

No. s
mm
l
mm
Weight icon
kg
200-17B 17 140 0.18
200-18B 18 140 0.18
200-19B 19 140 0.19
200-22B 22 150 0.26
200-24B 24 160 0.33
200-26B 26 180 0.43
200-27B 27 180 0.43
200-28B 28 180 0.43
200-29B 29 190 0.53
200-30B 30 190 0.53
200-32B 32 195 0.58
200-35B 35 210 0.85
200-36B 36 210 0.85
200-37B 37 210 0.85
200-38B 38 225 0.98
200-41B 41 225 1.04
200-42B 42 225 1.10
200-46B 46 225 1.48
200-50B 50 280 1.71
200-52B 52 280 2.20
200-55B 55 310 2.20
200-56B 56 310 2.20
200-60B 60 320 2.76
200-63B 63 350 4.36
200-65B 65 350 4.36
200-70B 70 375 4.85
200-75B 75 395 5.56
200-80B 80 410 6.20
200-85B 85 415 6.50
200-90B 90 435 7.45
200-95B 95 450 8.10
200-100B 100 485 9.90
200-105B 105 485 9.90
200-110B 110 510 19.5
200-115B 115 510 19.5
200-120B 120 545 23.0
200-125B 125 545 23.0
200-130B 130 575 28.0
200-135B 135 575 28.0
200-145B 145 640 38.0
200-150B 150 640 38.0
200-155B 155 640 38.0
No. s
inch
l
inch
Wt.
lbs.
200U-010B 11/16 59/16 0.40
200U-015B 3/4 59/16 0.42
200U-020B 7/8 6 0.57
200U-025B 15/16 63/8 0.73
200U-030B 1 73/16 0.95
200U-035B 11/16 73/16 0.95
200U-040B 11/8 73/16 0.95
200U-045B 13/16 79/16 1.17
200U-050B 11/4 79/16 1.17
200U-055B 15/16 73/4 1.28
200U-060B 13/16 83/16 1.87
200U-065B 17/16 83/16 1.87
200U-070B 11/2 83/16 2.16
200U-080B 15/8 9 2.29
200U-085B 111/16 9 2.43
200U-095B 113/16 9 3.26
200U-105B 2 113/16 3.77
200U-110B 21/16 113/16 4.85
200U-120B 23/16 123/8 4.85
200U-125B 21/4 123/8 4.85
200U-135B 23/8 123/4 6.08
200U-145B 21/2 14 9.61
200U-150B 29/16 14 9.61
200U-160B 23/4 15 10.69
200U-175B 3 153/4 12.26
200U-182B 33/16 163/8 13.67
200U-190B 33/8 169/16 14.33
200U-198B 39/16 173/8 16.42
200U-205B 33/4 18 17.86
200U-210B 37/8 18 17.86
200U-215B 4 191/8 9.90
200U-220B 41/8 191/8 9.90
200U-225B 45/16 201/8 19.50
200U-240B 49/16 201/8 19.50
200U-250B 411/16 211/2 23.00
200U-265B 415/16 211/2 23.00
200U-270B 53/8 225/8 28.00
200U-300B 6 253/16 38.00
