Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 202-67A or 202-67B

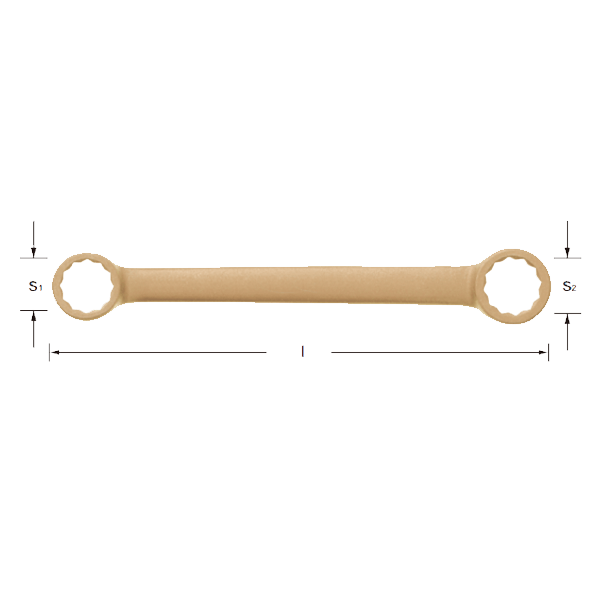

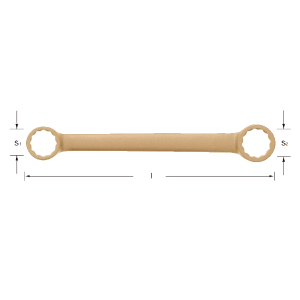

Type (ID): 202
Body::

No. s1xs2
mm
l
mm
Weight icon
kg
202-67 6X7 80 0.03
202-89 8X9 95 0.04
202-910 9X10 105 0.06
202-1214 12X14 130 0.10
202-1415 14X15 130 0.09
202-1719 17X19 150 0.14
202-1922 19X22 185 0.18
202-2224 22X24 190 0.22
202-2427 24X27 220 0.29
202-2730 27X30 270 0.42
202-3032 30X32 270 0.48
202-3236 32X36 305 0.60
No. s1xs2
inch
l
inch
Wt.
lbs.
202U-005 7/32X1/4 33/4 0.09
202U-010 1/4X5/16 33/4 0.09
202U-015 11/16X3/4 33/4 0.09
202U-020 3/8X7/16 53/16 0.21
202U-030 7/16X9/16 53/16 0.21
202U-070 11/16X3/4 6 0.31
202U-080 3/4X7/8 73/8 0.40
202U-095 7/8X15/16 79/16 0.49
202U-120 15/16X11/16 83/4 0.64
202U-135 11/16X13/16 103/4 0.93
202U-150 13/16X11/4 103/4 1.06
202U-160 11/4X17/16 123/16 1.32
