Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 207F-30A or 207F-30B

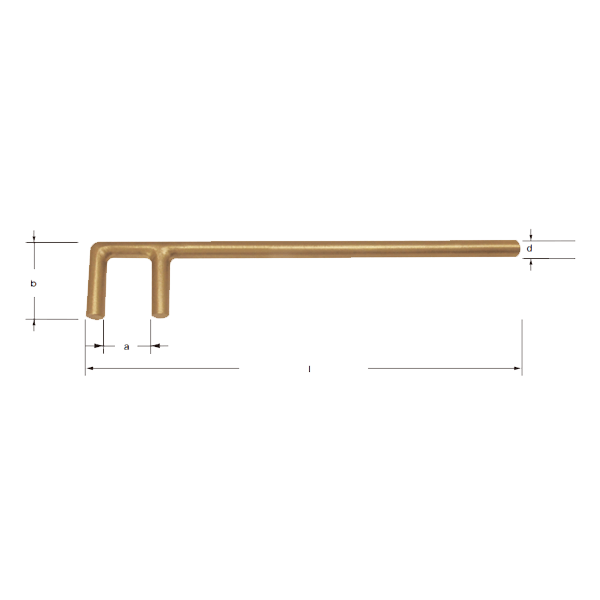

Type (ID): 207F
Body::

No. a
mm
b
mm
d
mm
l
mm
Weight icon
kg
a
inch
b
inch
d
inch
l
inch
Wt.
lbs.
207F-30 30 56 13 300 0.44 13/16 21/4 1/2 12 0.96
207F-35 35 61 13 350 0.50 13/8 27/16 1/2 14 1.11
207F-40 40 72 16 400 0.87 19/16 27/8 5/8 16 1.93
207F-45 45 77 16 450 0.98 13/4 31/16 5/8 18 2.15
207F-50 50 88 19 500 1.54 2 31/2 3/4 20 3.39
207F-60 60 104 22 600 2.47 23/8 41/8 7/8 24 5.44
207F-70 70 120 25 700 3.71 23/4 43/4 1 28 8.18
207F-80 80 136 28 800 5.31 33/16 57/16 11/8 32 11.72
