Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 1503C-19A or 1503C-19B

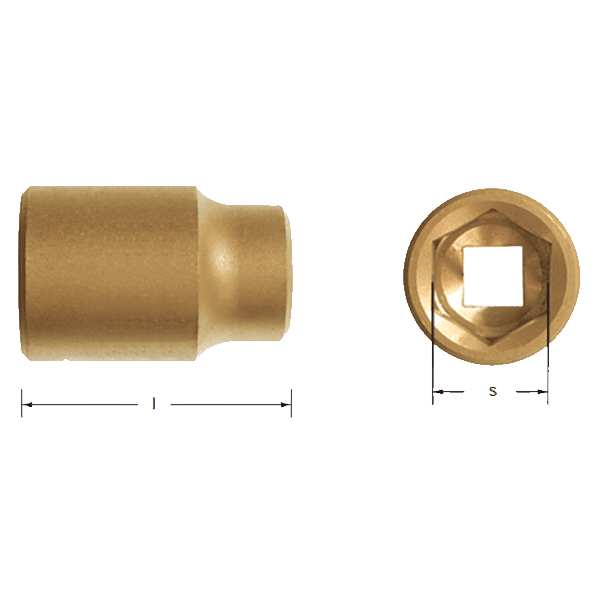

Type (ID): 1503C
Body:

No.s
mm
l
mm
Weight icon
kg
1503C-1919490.24
1503C-2020490.24
1503C-2121490.24
1503C-2222490.25
1503C-2323490.26
1503C-2424490.26
1503C-2525490.26
1503C-2626500.26
1503C-2727500.26
1503C-2828500.26
1503C-2929500.28
1503C-3030500.28
1503C-3131540.31
1503C-3232540.32
1503C-3434540.38
1503C-3535540.46
1503C-3636560.46
1503C-3737560.51
1503C-3838560.51
1503C-3939560.58
1503C-4040600.62
1503C-4141600.62
1503C-4242600.62
1503C-4343600.68
1503C-4444660.68
1503C-4545660.80
1503C-4646660.82
1503C-4747660.84
1503C-4848680.87
1503C-4949680.90
1503C-5050680.92
No.s
inch
l
inch
Wt.
lbs.
1503CU-0053/4115/160.53
1503CU-01013/16115/160.53
1503CU-0157/8115/160.55
1503CU-02015/16115/160.57
1503CU-0251115/160.57
1503CU-03011/1620.57
1503CU-03511/820.57
1503CU-04013/1620.62
1503CU-04511/421/80.68
1503CU-05015/1621/80.71
1503CU-05513/821/80.84
1503CU-06017/1621/41.01
1503CU-06511/221/41.12
1503CU-07019/1621/41.28
1503CU-07515/823/81.37
1503CU-080111/1623/81.37
1503CU-08513/425/81.50
1503CU-090113/1625/81.81
1503CU-09517/825/81.85
1503CU-100115/16211/161.98
1503CU-1052211/162.03
