Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 1630-6A or 1630-6B

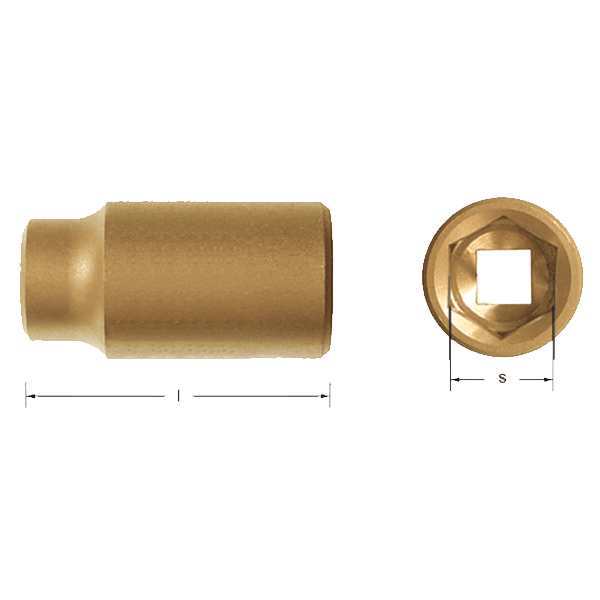

Type (ID): 1630
Body:

No.s
mm
l
mm
Weight icon
kg
1630-66850.14
1630-77850.14
1630-88850.16
1630-99850.16
1630-1010850.16
1630-1111850.16
1630-1212850.16
1630-1313850.16
1630-1414850.16
1630-1515850.16
1630-1616850.18
1630-1717850.20
1630-1818850.22
1630-1919850.22
1630-2020850.22
1630-2121850.22
1630-2222850.24
1630-2323850.26
1630-2424850.28
1630-2525850.28
1630-2626850.32
1630-2727850.36
1630-2828850.40
1630-2929850.40
1630-3030850.42
1630-3232850.46
1630-3636850.46
No.s
inch
l
inch
Wt.
lbs.
1630U-0051/430.31
1630U-0105/1630.35
1630U-0153/830.35
1630U-0207/1630.35
1630U-0251/230.35
1630U-0309/1630.35
1630U-03219/3230.35
1630U-0355/830.40
1630U-04011/1630.44
1630U-0453/430.49
1630U-04725/3230.49
1630U-05013/1630.49
1630U-0557/830.53
1630U-06015/1630.62
1630U-065130.62
1630U-07011/1630.79
1630U-07511/830.88
1630U-08013/1630.93
1630U-08511/431.01
1630U-09015/1631.01
1630U-09513/831.01
1630U-10017/1631.01
1630U-11011/231.10
1630U-11519/1631.10
1630U-12015/831.10
