Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 502-6A or 502-6B

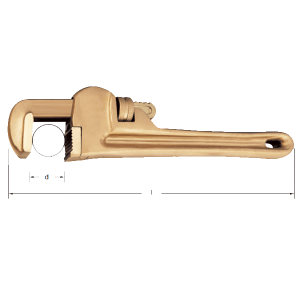

Type (ID): 502
Body:

No. d max
mm
l
mm
Weight icon
kg
d max
inch
l
inch
Wt.
lbs.
502-6 20 150 0.30 3/4 6 0.66
502-8 25 200 0.47 1 8 1.04
502-10 30 250 1.02 13/16 10 2.25
502-12 40 300 1.48 19/16 12 3.26
502-14 50 350 1.63 2 14 3.59
502-18 60 450 2.85 23/8 18 6.28
502-24 75 600 4.84 3 24 10.67
502-36 85 900 7.79 33/8 36 17.17
502-48 110 1200 13.57 43/8 48 29.92
