Material (please specify when ordering):

  • A = Aluminum Bronze (AlBz)
  • B = Copper Beryllium (BeCu)

Example: 301C-2A or 301C-2B

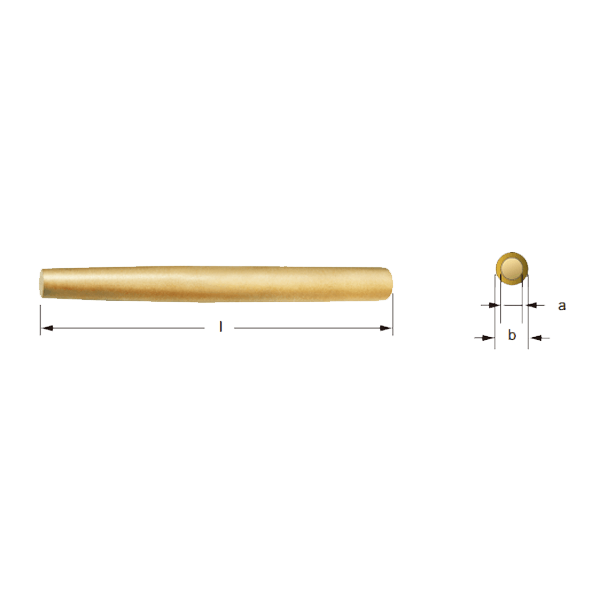

Type (ID): 301C
Body:

No.a
mm
b
mm
l
mm
Weight icon
kg
301C-22101500.08
301C-33101500.08
301C-44101500.08
301C-55101500.08
301C-66101500.09
301C-77121500.13
301C-88121500.13
301C-99141500.17
301C-1010141500.18
301C-1111161500.23
301C-1212161500.23
301C-1313181500.29
301C-1414181500.30
301C-1515202000.49
301C-1616202000.50
301C-1717222000.60
301C-1818222000.61
301C-1919242500.89
301C-2020242500.91
301C-2121262501.05
301C-2222262501.07
No.a
inch
b
inch
l
inch
Wt.
lbs.
301CU-0051/163/860.17
301CU-0101/83/860.18
301CU-0153/163/860.19
301CU-0201/43/860.19
301CU-0255/167/1660.28
301CU-0303/89/1660.38
301CU-0357/165/860.51
301CU-0401/211/1660.65
301CU-0459/1611/1660.66
301CU-0505/83/481.10
301CU-05511/167/881.32
301CU-0603/415/16101.97
301CU-06513/161102.32
301CU-0707/811/16102.35
301CU-07515/1611/410
301CU-08511/1615/1611
301CU-09513/1615/1611
